In the field of sawing large quantities of materials of the same specification, we have introduced a horizontal double-column fully automatic metal CNC band saw. This product is characterized by automation, high precision, and convenient operation, providing users with sawing solutions.

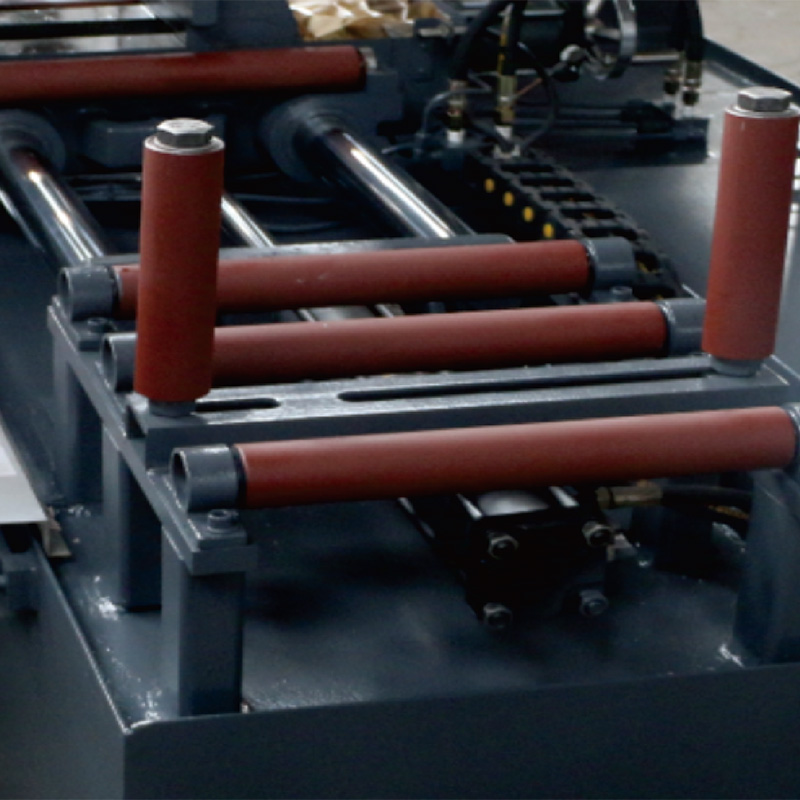

This CNC band saw realizes fully automated operation, including automatic feeding, automatic feeding, and automatic sawing. This makes the entire sawing process more efficient, saves labor costs, and improves production efficiency. Users only need to simply set the sawing parameters to easily complete the precise cutting of large quantities of materials of the same specifications.

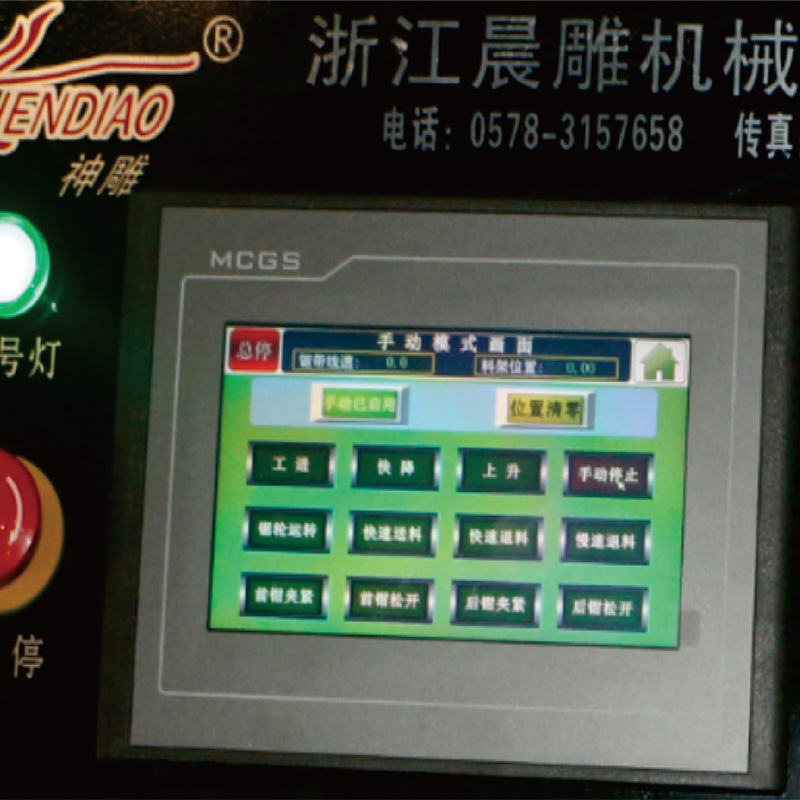

Compared with the traditional control panel mode, we adopt an advanced human-machine interface to make the setting of sawing parameters more intuitive and convenient. Through the digital operation interface, users can accurately and quickly set the required sawing parameters to achieve more flexible production scheduling.
This CNC band saw machine is equipped with a programmable logic controller (PLC), allowing users to flexibly set and change sawing modes. This flexibility makes the equipment suitable for diverse production needs and provides users with greater customization options.
The feeding positioning is controlled by a grating ruler, and the positioning error is only ≤0.2mm. This advanced technology ensures the accurate positioning of materials during sawing, improving cutting accuracy. Whether for small-size parts or high-volume cuts that require a high degree of consistency, users' precise requirements can be met.
A horizontal double-column fully automatic metal CNC band sawing machine is suitable for sawing large quantities of materials of the same specification, covering various applications of metal materials, such as construction, machinery manufacturing, aerospace, and other fields. Whether it is aluminum alloy, stainless steel, or steel, it can complete the cutting task with ease.
In addition to high efficiency and high precision, safety, and stability are also important factors we consider. This CNC band saw machine fully considers safety in its design and is equipped with corresponding safety protection mechanisms to ensure the safety of operators during use.
The horizontal double-column fully automatic metal CNC band saw machine has become an ideal choice for sawing large quantities of materials of the same specification due to its automation, high precision, and ease of operation. Whether it is to improve production efficiency, ensure cutting accuracy, or adapt to different production needs, this product can meet users' expectations and bring them a more convenient and efficient production experience.
Model |
GZ4233C |
Cutting Range(mm) |
Φ330■330×330 |
Blade Specifications(mm) |
4115×34×1.1 |
Feeding Speed |
Stepless Speed Control |
Saw Blade Speed(m/min) |
25.39.56.76 |
Total Power(kw) |
4.79 |
Fastening Mode |
Hydraulic |
Overall Size(mm) |
2100×2000×1400 |
