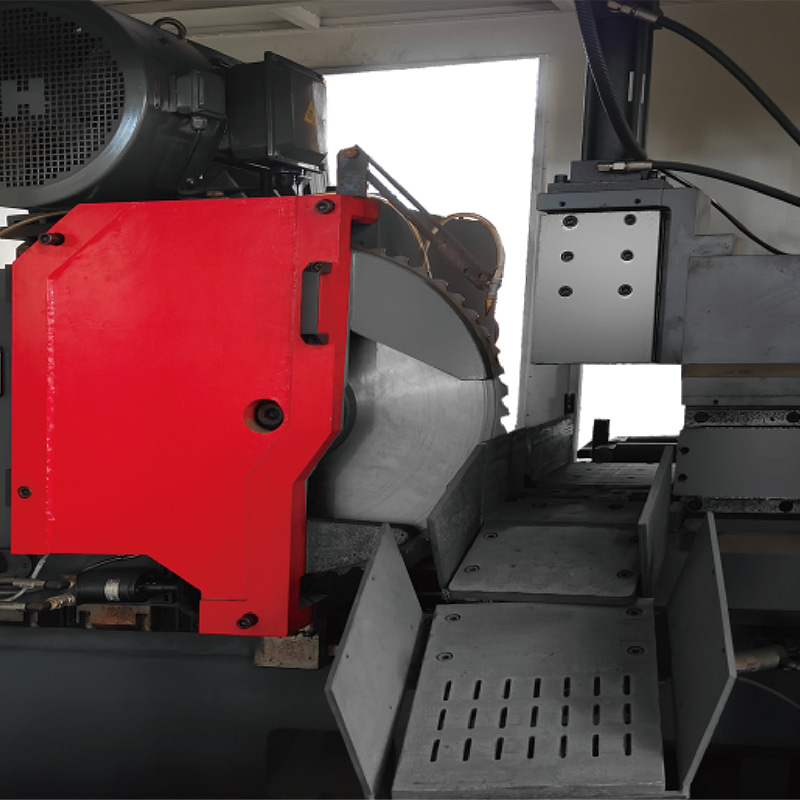

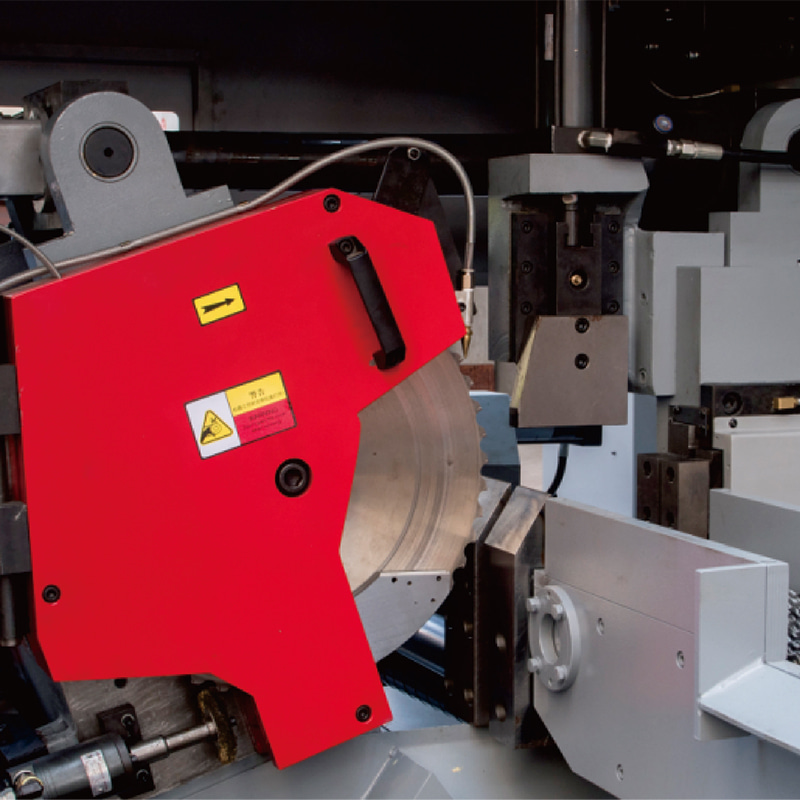

In modern manufacturing, efficient and precise cutting is the key to ensuring production efficiency. We have introduced a newly designed fully automatic 100-200mm bar and tube cutting machine. This equipment has many advantages such as high rigidity, environmental protection and low noise, ideal feeding method, and ultra-long tool service life, providing users with comprehensive production capabilities. solution.
Highly rigid body structure:
The equipment adopts a highly rigid body structure to ensure stability during high-speed operation. This not only improves the durability of the equipment, but also ensures stability during the cutting process, and is suitable for the cutting needs of various types of rods and pipes.
Advanced tightening device:
Equipped with advanced tightening devices to ensure that the cutting material remains firmly in place during the entire process. This design ensures cutting accuracy and provides users with reliable cutting performance, especially in applications that require extremely high precision.
Environmentally friendly, low-noise sawing environment:
In product design, we pay attention to environmental protection and adopt low-noise technology to effectively reduce the noise level during operation. This creates more pleasant conditions for the working environment and is also in line with the environmentally friendly pursuit of modern enterprises.
Ideal deflection feeding method:
The unique deflection feeding method is a unique feature of this equipment, which can effectively reduce damage to the surface of the cutting material. This design takes into account the importance of material surface quality and provides a more reliable cutting solution, ensuring higher quality material after cutting.
Extra long tool life:
The equipment is equipped with highly wear-resistant cutting tools, ensuring a long service life. This not only reduces the frequency of tool replacement but also improves the production efficiency of the equipment and saves maintenance costs for users.
High-precision feeding and feeding system of servo motor + ball screw:
A high-precision feeding and feeding system that combines servo motors and ball screws ensures accuracy during the cutting process. This technology ensures that every cut is made to the expected high standard, providing production precision.
Customized design:
We provide a variety of customized design options such as hinged, tilt push, and flat push to meet the specific needs of different customers. This flexibility makes the equipment more suitable for diverse production scenarios and provides users with more personalized solutions.
The fully automatic 100-200mm bar and tube cutting machine is a powerful assistant in modern manufacturing. Its highly customized design, stable and efficient performance, and environmentally friendly and low-noise working environment provide users with a full range of production advantages. Whether it is an application requiring extremely high precision or a need for high-efficiency production, this equipment can meet the various cutting requirements of users.
|
Model |
NCJ-200Y |
|
|
Cutting Capacity |
||
|
Bar |
● |
100-200 mm |
|
Angle material |
■ |
100-150 mm |
|
Round tube |
○ |
100-200 mm |
|
Square tube |
□ |
100-150 mm |
|
Head Spindle |
||
|

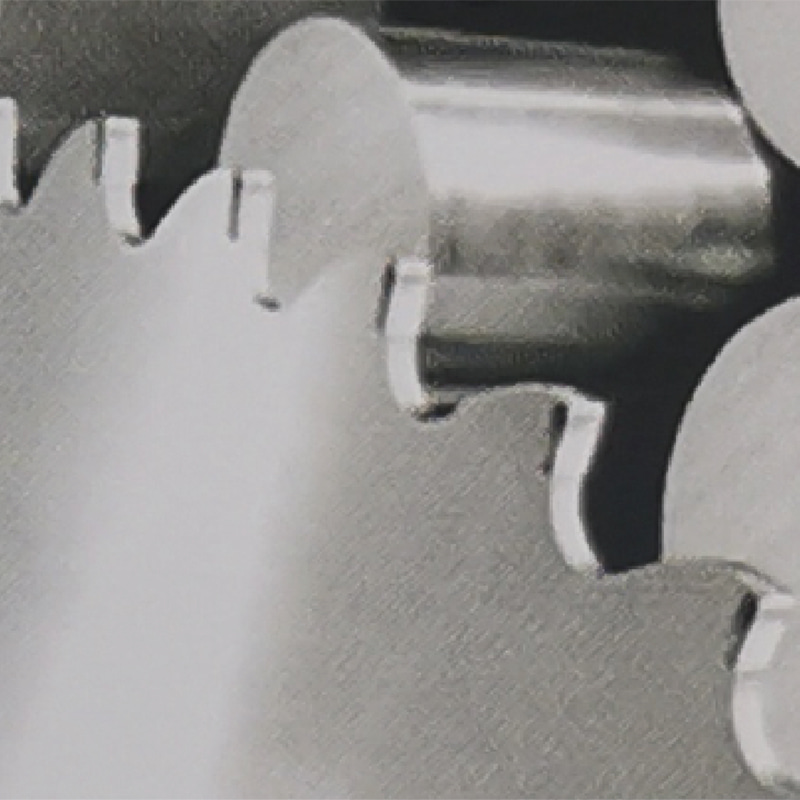

Application of TCT tungsten carbide circular sawblade |
Φ630×3.4 mm |
|
|
Application of HSS high speed steel circular saw blade |
Φ630×3.4 mm |
|
|
Rotation number of cutter |
70~130rpm |
|
|
Spindle driving motor |
20HP ( 18.5KW ) |
|
|
Tool gap compensation device |
Magnetic powder brake |
|
|
Tool Shockproof parallel block |
Tungsten carbide |
|
|
Tool Chip cleaner |
Steel brush disc |
|
|
Cut-off feeding way |
Rocker type IAC servo |
|
|
Clamp method |
Hvdraulic/Horizontal and vertical |
|
|
Sizing feding(GFC)mechanism |
||
|
Sizing feeding driving way |
AC servo motor/Precision ball screw |
|
|
Feed clamp mode |
Horizontal hydraulic |
|
|
End cutting length |
8-99 mm |
|
|
Residual material length |
60 mm( Shortest) |
|
|
GFC feeding amount |
6-800mm(Single time) |
|
|
Automatic feeding device |
||
|
Material length |
2000-6000mm |
|
|
Material placement area |
2000mm |
|
|
Feeding way |
Hydraulic lifting material |
|
|
Angle material slip device |
Optional accessories |
|
|
Hydraulic device |
||
|
Hydraulic driving motor |
3.75Kw (3Hp)/4p |
|
|
Hydraulic driving pressure |
70 kg/cm² (7 MPa) |
|
|
Oil capacity |
110 liters |
|
|
Air Pressure device |
||
|
Working air pressure |
5-7kg/cm² (55~85psi) |
|
|
Machine size & weight |
||
|
Size (Lx Wx H) |
7800×3800×2350mm |
|
|
Weight |
10000 Kgs |
|
|
Equipment & device |
||
|
Automatic lubrication system |
Timing forced oil |
|
|
Automatic distributor |
Pneumatic reciprocating |
|
|
Chip conveyor |
Chain plate |
|
|
Oil mist cooling device |
Oil mist lubrication sprayer |
|
|
Cutting fluid cooling device |
0.09Kw/2p/Cycle cooling |
|
|
Working lamp |
Quatrz lamp/Waterproof and dustproof |
|
