The improved Die Steel Plate Automatic Feeding Double-Cylinder Horizontal Band Sawing Machine is a high-performance equipment designed specifically for cutting die materials. Its unique functional characteristics make it an indispensable tool in the field of metal processing, which has brought significant help to people's production and life.
1. Automatic feeding and working platform:
This double-column horizontal band saw machine is equipped with an advanced working platform hydraulic feeding system to realize automatic feeding of mold steel plates. This function greatly reduces the operator's labor intensity and improves production efficiency. The design of the work platform allows mold materials of different sizes and shapes to be easily loaded and positioned, ensuring cutting accuracy.
2. Precise guide arm positioning:
The precise guide arm positioning system on the bed is one of the key features of this band saw. This system ensures accurate guidance of the tool during the cutting process, thus ensuring the verticality and levelness of the cutting line. This is particularly important for work in mold manufacturing that requires high precision.
3. High-efficiency iron chip removal system:
The pulley drives the wire pulley to remove iron chips, keeping the machine bed clean at all times. This not only improves cutting efficiency, but also extends tool life and ensures a continuous, efficient production process. A clean work environment also helps maintain equipment and keep operators safe.

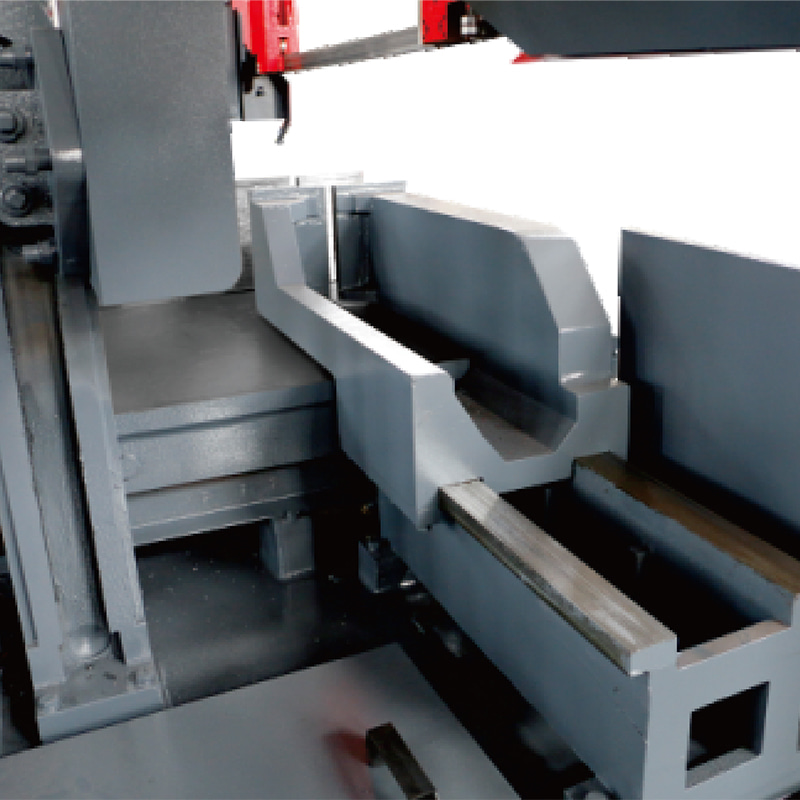

4. Full stroke clamping of oil cylinder:
The clamping method adopts full stroke clamping of the oil cylinder to ensure that the mold material is firmly clamped during the cutting process and prevents it from shifting or shaking. This clamping method not only improves the safety of cutting, but also ensures the stability and accuracy of cutting.
This band saw machine is widely used in the field of mold manufacturing, including plastic molds, die-casting molds, etc. By realizing automatic feeding and efficient cutting, it effectively improves the production efficiency of mold manufacturing and reduces labor costs. Operators can focus more on other work aspects and improve overall work efficiency.
The improved Die Steel Plate Automatic Feeding Double-Cylinder Horizontal Band Sawing Machine is not only an efficient metal processing equipment, but also a tool tailor-made for the mold manufacturing industry. Its advanced automation technology, precise positioning system and efficient iron chip removal function make it play an irreplaceable role in improving production efficiency and ensuring cutting quality, bringing obvious convenience and advantages to people's production and life. .
|
Model |
HC-7043Y |
|
Cutting Range(mm) |
Φ430×700×430 |
|
Saw Blade Size(mm) |
5930×41×1.3 |
|
Feeding Speed |
Stepless Speed Control |
|
Saw Blade Speed(m/min) |
30-61 Frequency Conversion |
|
Total Power(kw) |
7.09 |
|
Fastening Mode |
Hydraulic |
|
Overall Size(mm) |
3000×1550×1800 |
